Presentation Server Migration 4.0 a 4.5 to different server

This procedure explains how to update a Citrix community, let's say we have one or more servers with Presentation Server 4.0 and we want to migrate this community to new servers to retire the old servers, This would be the procedure. Because if you want to have a mixed community with both versions, you could, they would simply have to join the existing community. In this case we are going to retire the old servers, you will have to move the DB in case it is an Access or MSDE to another server with SQL version 2005; if the database is on a SQL server external to these Presentation Servers, It could stay where it is. In this procedure we will migrate the community to other servers with the 4.5 and move the database from MSDE to a SQL 2005. Logically, all its functions will have to be transferred, The Applications, services like the web interface, The License Server (we will need to generate the licenses again with the new hostname of the license server, compatible with the 4.5)…

We would start the installation as if it were a second community server, we would join the existing community.

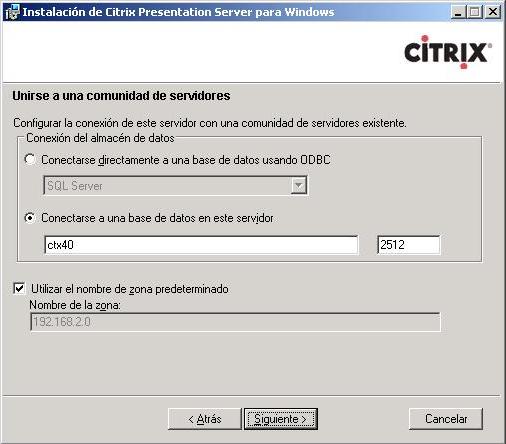

During the installation process we will indicate that we are going to join a server community, we will enter the name of a Presentation Server running version 4.0, in my case CTX40 and its port which by default is 2512, “Following”,

It asks us for credentials to be able to join this community, we provide them and continue the installation. We restart when it asks us. And now we should start migrating all the roles of each server.

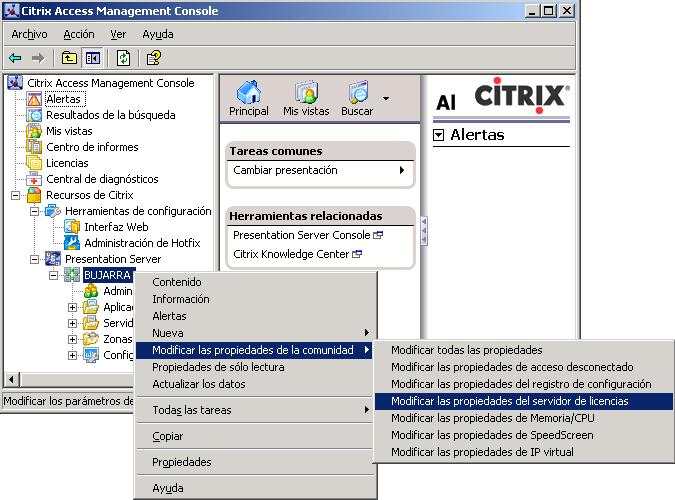

For example, lo primero que haría sería cambiar en la comunidad quien es el servidor de licencias, pasaré este rol de CTX40 a CTX45. To do this,, We open the “Citrix Access Management Console” y vamos hasta “Citrix Resources” > “Presentation Server” > y con el botón derecho en “NOMBRE_DE_LA_COMUNIDAD” > “Modificar las propiedades de la comunidad” > “Modificar las propiedades del servidor de licencias”.

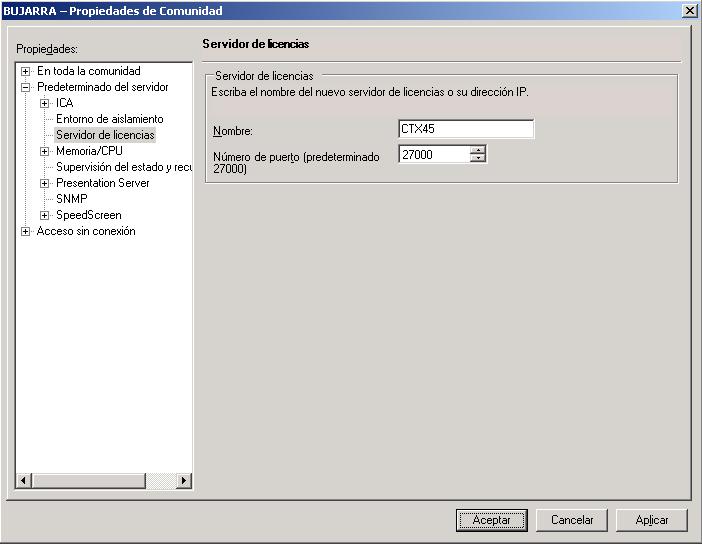

And in “Name” indicamos que servidor será el nuevo que tenga las licencias válidas para un entorno 4.5, habrá que bajarlas de internet con el nuevo nombre del servidor de licencias. “Accept”.

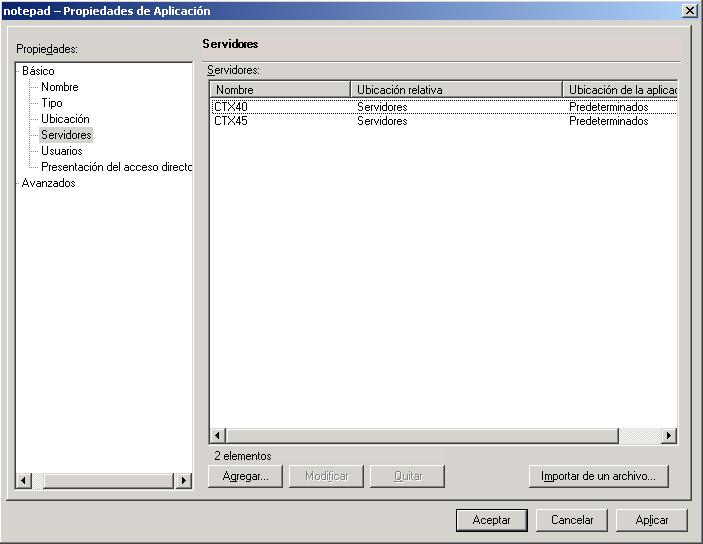

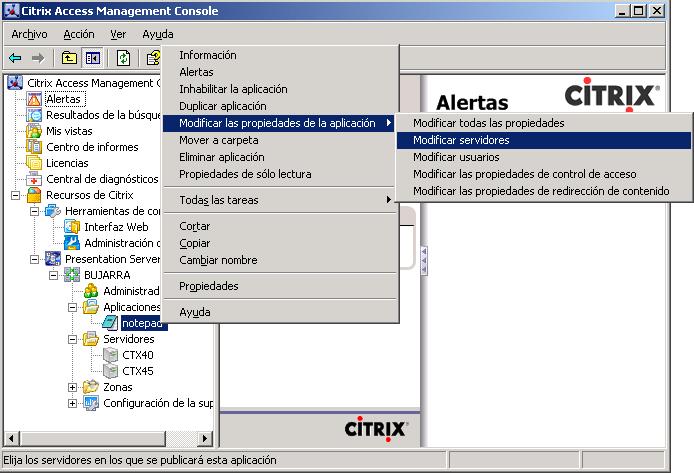

For example, otra cosa que habría que hacer es migrar las aplicaciones, instalar las aplicaciones que querramos en estos con la 4.5 y modificarlas a la hora de publicarlas, cambiar de servidor, del viejo al nuevo. Para ello en la consola “Citrix Access Management Console” We're going to “Citrix Resources” > “Presentation Server” > “NOMBRE_DE_MI_COMUNIDAD” > “Applications” y sobre las que nos interese con botón derecho > “Modificar las propiedades de la aplicación” > “Modificar servidores”.
